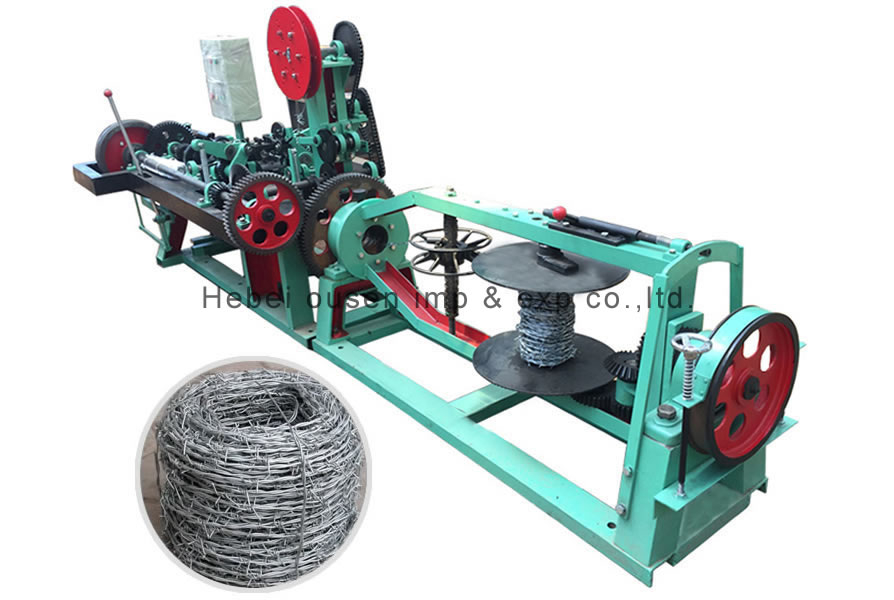

Features: Barbed wire machine is kind of machine to produce thorn steel wire.
The materials can be hot-dipped galvanized, low carbon steel wire, pvc wire, stainless steel wire etc.
There are 3 models of machine, CS-A, CS-B, CS-C.
With advanced design and fully automatic, all parts work coordinately, move steadily, easy and safety to operate.
Product application: Barbed wire are widely used for the protection of grassland boundary, railway and highway, etc.
Model No. | Type | Barb Space | Main Wire Diameter | Barb Wire Diameter |
OUSEN-CS-A | Single wire Normal twist | 3", 4", 5", 6" | 2.2-3.5mm | 1.8-2.2mm |
OUSEN-CS-B | Double wire Normal twist | 3", 4", 5", 6" | 1.8-3.0mm | 1.7-2.6mm |
OUSEN-CS-C | Double wire Normal and reverse twist | 3", 4", 5", 6" | 1.6-2.6mm | 1.6-2.3mm |
