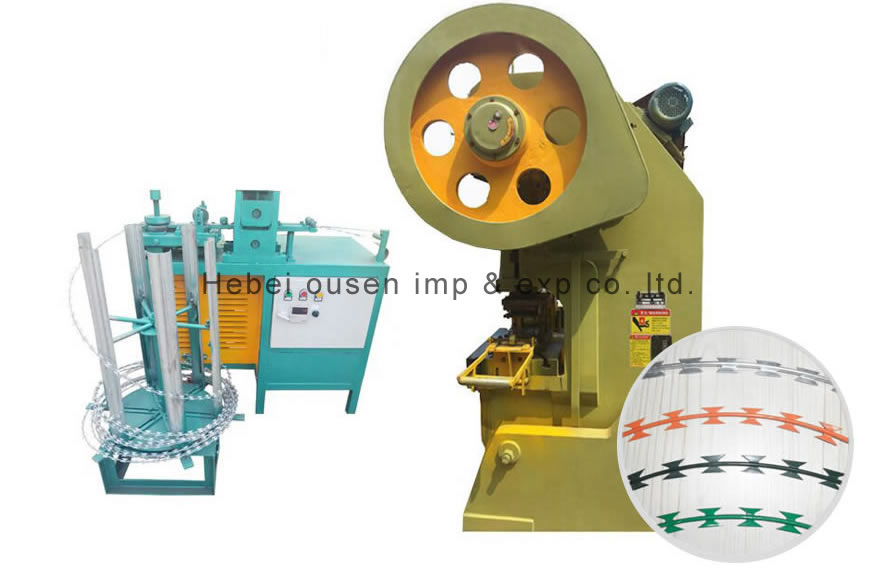

Features: Razor barbed wire blade thorn rope with beautiful, economical and practical, prevention effect is good, convenient, contruction and other excellent characteristic. The equipment is easy to operate, high efficiency, can save 20% raw material consumption. The equipment has two parts is razor blade punching machine and wire wrap forming machine. The punching machine is to make razor blade, forming machine is to wrap the wire into razor blade.
Product application: Razor barbed wire is widely applied in many countries of industrial and mining enterprises, garden apartment, border posts, military field, prisons, detention center, government buildings and other national security facilities.
Razor Blade Punching Machine | ||
Model No. | OUSEN-RBP5 | OUSEN-RBP9 |
Type | 5 strips | 9 strips |
Punching Pressure | 25T | 40T |
Blade thickness | 0.45 ± 0.05mm | 0.45 ± 0.05mm |
Motor Power | 3KW | 5.5KW |
Wire Wrap Forming Machine | |
Model No. | OUSEN-WF |
Wire Diameter | 2.5mm |
Blade thickness | 0.45 ± 0.05mm |
Motor power | 3KW |
Type | Blade Style | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
BTO-12 | ![]() | 0.45±0.05 | 2.5±0.1 | 12±1 | 13±1 | 26±1 |
BTO-15 | ![]() | 0.45±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
BTO-22 | ![]() | 0.45±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-30 | ![]() | 0.45±0.05 | 2.5±0.1 | 30±2 | 18±1 | 45±1 |
CBT-25 | ![]() | 0.45±0.05 | 2.5±0.1 | 25±2 | 16±1 | 40±1 |
CBT-60 | ![]() | 0.45±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | ![]() | 0.45± 0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
