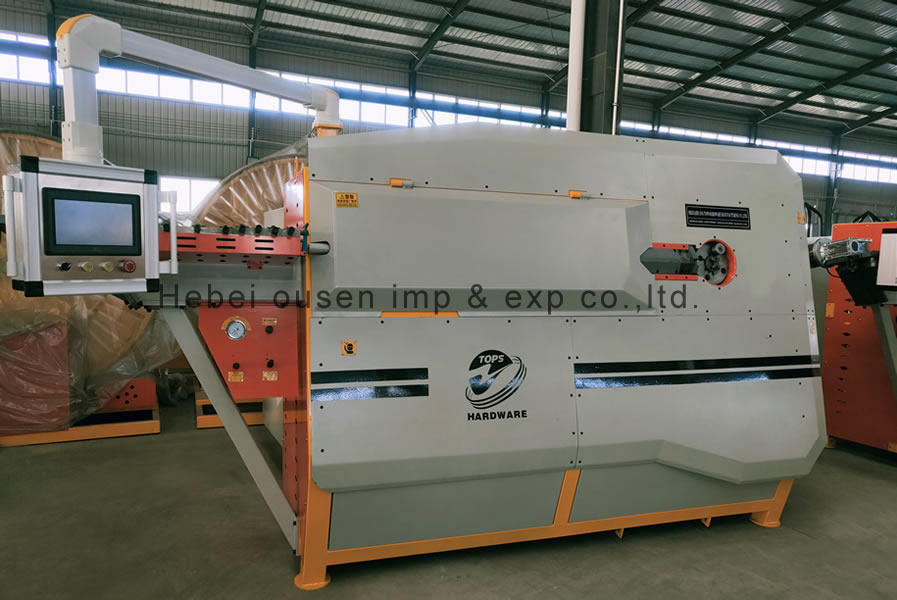

CNC Automatic Stirrup Bending Machine

Features: The equipment adopts PLC control and integration feeding structure, higher accuracy, small error. It can automatically complete steel bar straighten, length, stirrup bend and cut. It continuous production of a variety of flat shape products.

Product application: It is widely used for construction, steel processing plants and other area. Double-roller synchronization with a wire feed system, easy to use and more convenient to study, high efficiency.

Model No. OUSEN-S1 OUSEN-S2 OUSEN-S3 OUSEN-S4 OUSEN-S5 OUSEN-S6
Single wire diameter Round 4-10mm
Screw 4-8mm
Round 4-12mm
Screw 4-10mm
5mm-14mm Round 4-12mm
Screw 4-10mm
5mm-14mm 6mm-16mm
Double wire diameter Round 4-6mm
Screw 4-6mm
Round 4-8mm
Screw 4-8mm
5mm-10mm Round 4-10mm
Screw 4-8mm
5mm-10mm 6mm-10mm
Processing product Stirrup Stirrup Stirrup Stirrup
And Rebar
Stirrup
And Rebar
Stirrup
And Rebar
Pieces processed ≤2 ≤2 ≤2 ≤2 ≤2 ≤2
Processing shape 100 kinds 500 kinds 500 kinds 500 kinds 500 kinds 500 kinds
Max bending angle 180° 180° ± 180° ± 180° ± 180° ± 180°
Max. traction speed 60 m/min. 60 m/min. 75m/min. 60 m/min. 75m/min. 75m/min.
Max. bending speed 800°/s 800°/s 1000°/s 800°/s 1000°/s 1000°/s
Length accuracy ±1mm ±1mm ±1mm ±1mm ±1mm ±1mm
Angle accuracy ±1° ±1° ±1° ±1° ±1° ±1°
Motor power 14 KW 20 KW 32KW 23.5 KW 32KW 60KW
Average power 4.5KW/h 5KW/h 5KW/h 5KW/h 5KW/h 5KW/h
Working temperature -5℃ - 40℃ -5℃ - 40℃ -5℃ - 40℃ -5℃ - 40℃ -5℃ - 40℃ -5℃ - 40℃
