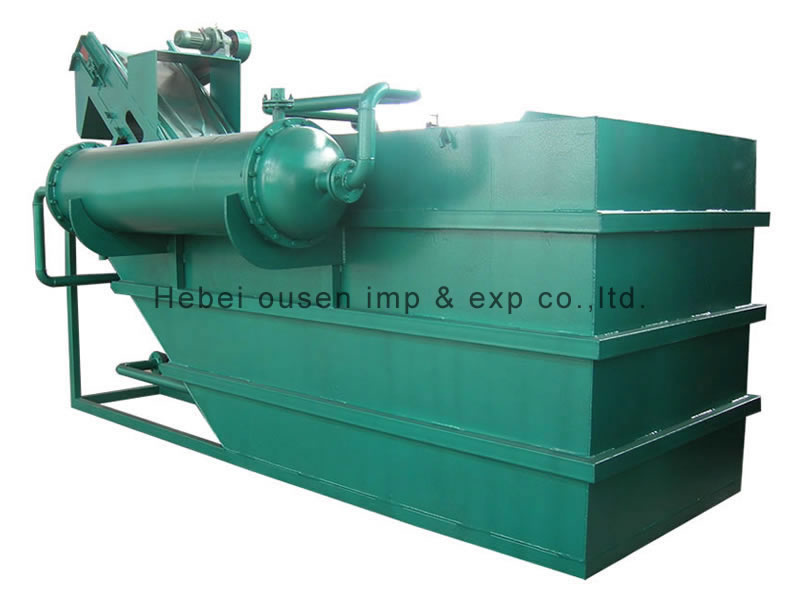

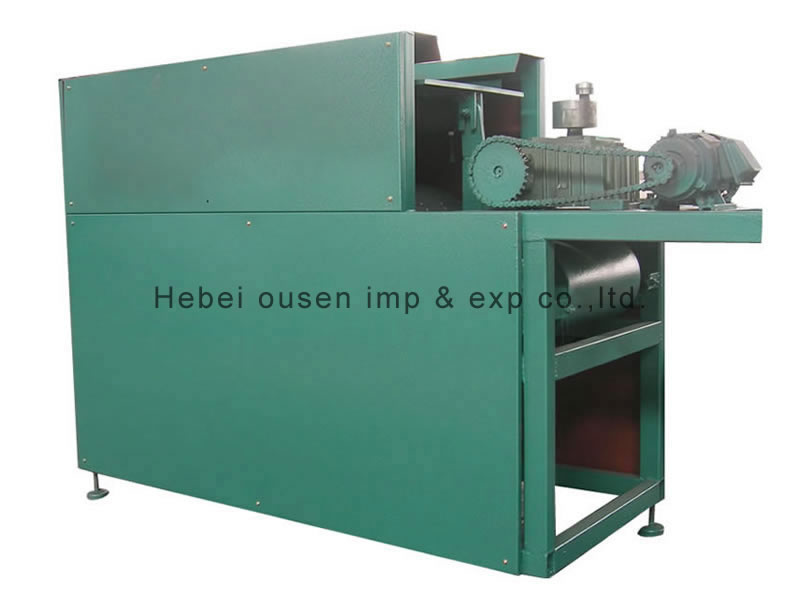

Features: Mesh belt annealing furnace is equipped with material feeding, quenching furnace, water or oil tank lifting, mesh belt temperating furnace and PID electrical cabinet. With high technology, the equipment realized convenient operation, fast and evenly heating, energy saving.
Product application: Mesh belt annealing furnace is designed for quenching and tempering of concrete nails, screw nails and small parts,etc.

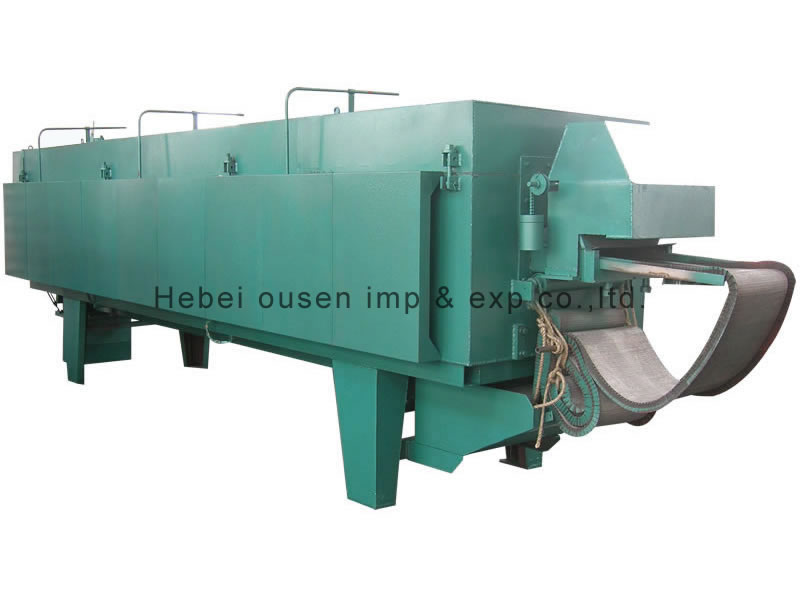

Mesh-belt quenching furnace
Model No. | OUSEN-QF120 | OUSEN-QF200 |
Heating power | 120 KW | 200 KW |
Max. operating temperature | 950℃ | 950℃ |
Working temperature | 750~850℃ | 750~850℃ |
Temperature control area | Three section | Three section |
Temperature control tolerance | ±2℃ | ±2℃ |
Furnace temperature homogeneity | ±5℃ | ±5℃ |
Mesh width | 400mm | 550mm |
Mesh material | Stainless steel 314, herringbone | Stainless steel 314, herringbone |
Driver power | 0.75 KW | 0.75 KW |
Muffle effective size | 450x120 mm (W*H) | 600x120 mm (W*H) |
Methyl alcohol dosage | App. 3kg/hour | App. 3kg/hour |
Production capacity | App.150kg/hour | App.250kg/hour |

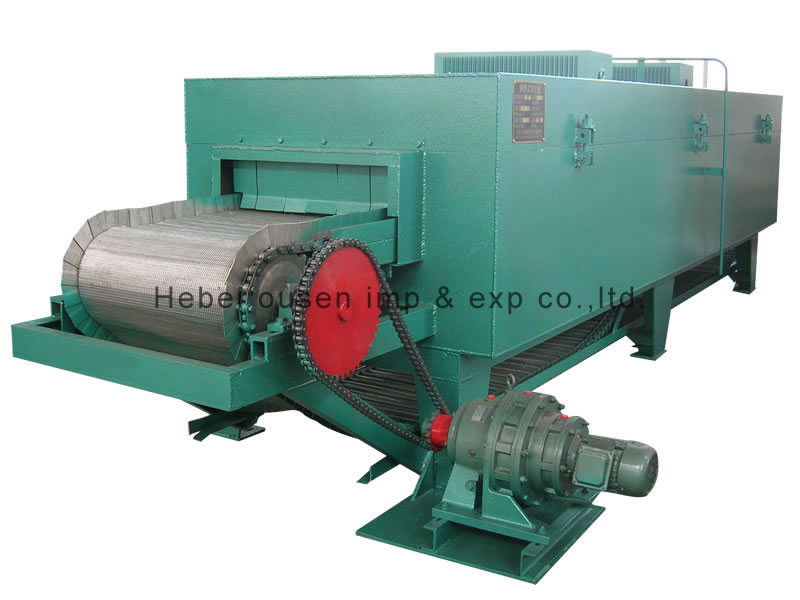

Mesh-belt tempering furnace
Model No. | OUSEN-TF45 | OUSEN-TF75 |
Heating power | 45 KW | 75 KW |
Max. operating temperature | 650℃ | 650℃ |
Working temperature | 400~500℃ | 400~500℃ |
Temperature control area | One section | One section |
Temperature control tolerance | ±2℃ | ±2℃ |
Furnace temperature homogeneity | ±5℃ | ±5℃ |
Mesh width | 550mm | 700mm |
Mesh material | Galvanized A3, herringbone | Galvanized A3, herringbone |
Driver power | 0.75 KW | 0.75 KW |
Circulating fan power | 3.0 KW | 3.0 KW |
