Premium Type Wire Drawing Machine

Features: The premium type wire drawing machine has two type, Straight line wire drawing machine and pulley type wire drawing machine. The equipment is used for drawing of low carbon steel wire, medium carbon steel wire and high carbon steel wire. With high stable performance, convenient operation and maintenance, etc.
It is the most advanced technology, with characteristics of PLC control, touch screen, frequency inverter control, spraying tungsten carbide drum, water cooling system, gearbox reduction and high drawing speed.

Product application: The finished wire is widely used for construction wire, galvanized wire, spring wire, cable wire, welding wire, steel core wire, alloy wire, etc.

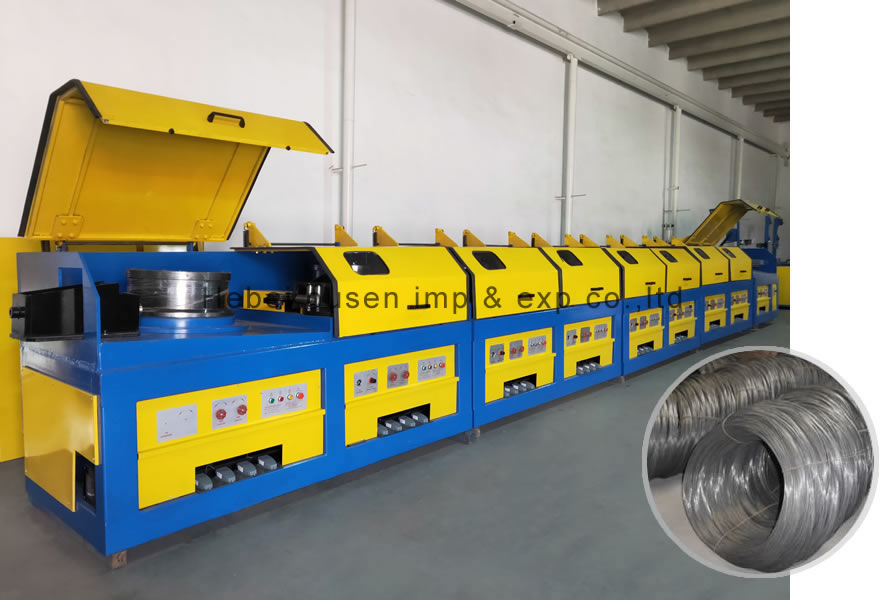

Straight Line Wire Drawing Machine

Model No.OUSEN-SLD
Drum  diameter400mm, 560mm, 600mm, 700mm, 800mm
Max. inlet wire diameter12mm
Min. outlet wire diameter0.8mm
Single motor power11kw, 15kw, 18.5kw, 22kw, 30kw, 45kw

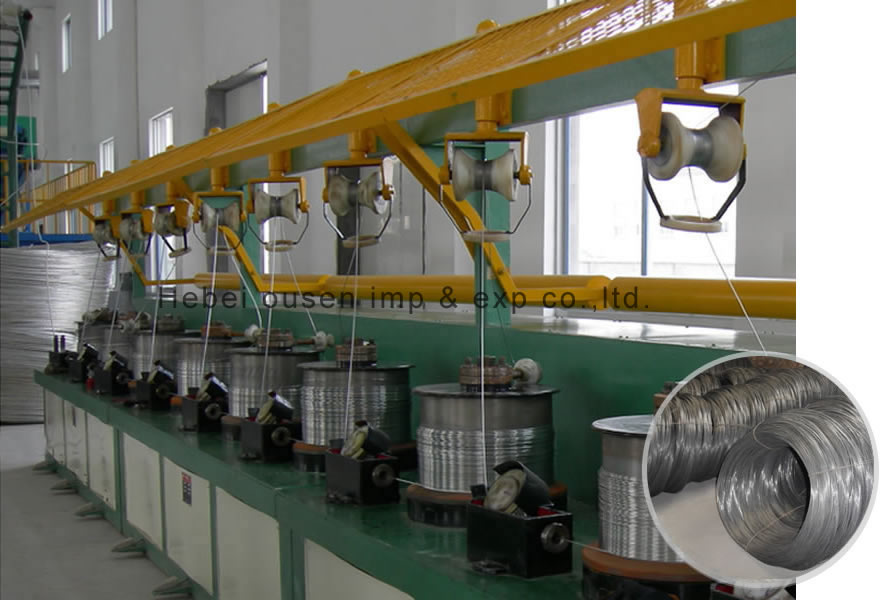

Pulley Type Wire Drawing Machine

Model No.OUSEN-PTD
Drum Diameter400mm, 560mm, 600mm, 700mm, 800mm
Max. inlet wire diameter14mm
Min. outlet wire diameter0.4mm
Single motor power7.5KW, 15KW, 18.5KW, 22KW, 30KW, 45KW

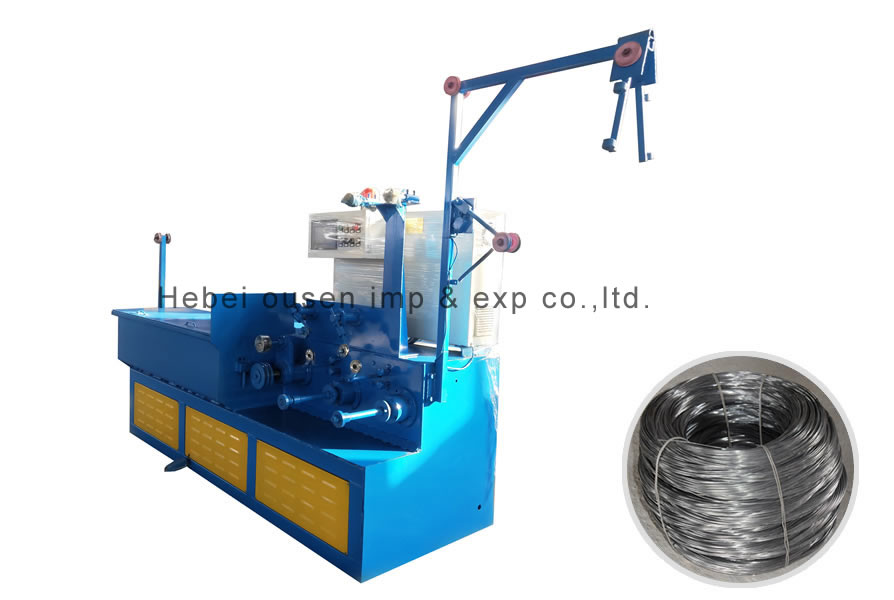

Water Tank Wire Drawing Machine

Features: Water tank drawing machine is also called wet type wire drawing machine.

Application: The equipment with frequency inverter and high speed drawing. It is widely used for drawing small wire diameter.

Model No.OUSEN-WTD
Inlet wire diameter2.0-2.2 mm2.0-2.2 mm
Outlet wire diameter0.9mm0.6mm
Motor power18.5KW22KW, 30KW
